• Liquid-cooled • 4-stroke In-Line Four • DOHC 16-valve • Digital Fuel Injection • 998 cm3 • 6-speed • S-KTRC • 476.3lb
BUILT BEYOND BELIEF

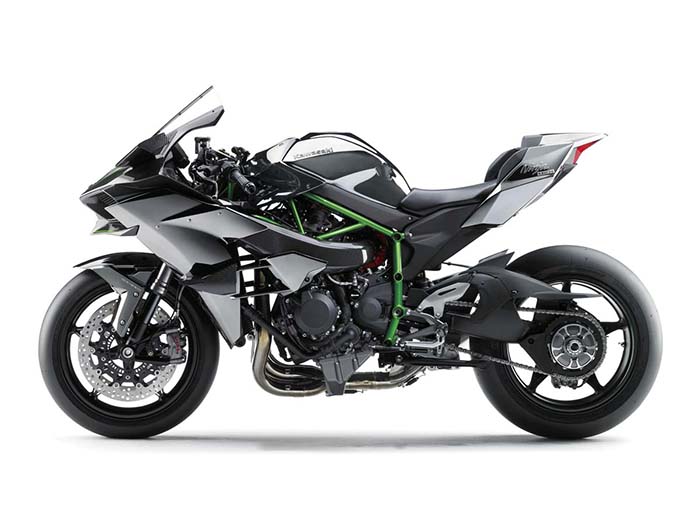

The Kawasaki Ninja H2R hypersport motorcycle is an engineering marvel, made possible only through the sourcing of technological expertise from multiple divisions of Kawasaki Heavy Industries, Ltd. (KHI). The result of this unprecedented collaboration is a system of carefully crafted premium components that work in concert to create an unbelievably powerful machine—one that’s more than worthy of the legendary H2 name.
STUNNING AERODYNAMIC BODYWORK

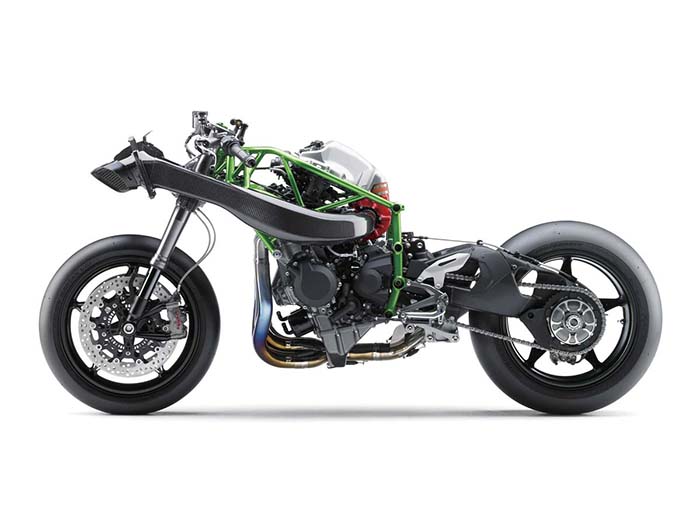

The Intense Force design of the Ninja H2R is a product of functional beauty. Each and every angle, from the carbon-fiber wings to the trellis frame to the front fender, is designed to contribute unprecedented performance and style
ADVANCED ELECTRONICS
Complementing the immense power of the Ninja H2R are several versatile electronic rider support systems that provide added control and confidence on the track.
Engine and Transmission |
|
| Displacement : | 998 cm³ |
| Engine Type : | Liquid-cooled, 4-stroke In-Line Four |
| Compression : | 8.3:1 |
| Bore x Stroke : | 76.0 x 55.0 mm |
| Valves per Cylinder : | 4 |
| Fuel System : | Fuel injection: ø50 mm x 4 (with Dual Injection) |
| Fuel Control : | DOHC, 16 valves |
| Ignition : | Digital |
| Intake System : | Kawasaki Supercharger |
| Transmission Type : | 6-speed, return Dog-ring |
| Final Drive : | Chain |
Chassis, Suspension, Brakes and Wheels |
|
| Rake (fork angle) : | 25.1˚ / 4.3 Inch |
| Front Suspension : | 43mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs / 4.7 in |
| Rear Suspension : | NEW Uni-Trak® with gas-charged shock, piggyback reservoir, dual-range (high/low speed) compression damping, rebound damping and preload adjustability, and top-out spring / 5.3 in |
| Front Tyre Dimension : | 120/70ZR17M/C (58W) |
| Rear Tyre Dimension : | 190/65ZR17M/C (78W) |
| Front Brakes : | Dual radial-mount, opposed 4-piston calipers, dual semi-floating 330mm discs, KIBS ABS |
| Front Brake Dimeter : | 330 mm |
| Rear Brake | Opposed 2-piston calipers, single 250mm disc, KIBS ABS |
| Rear Brake Diameter : | 250 mm |
Physical measures and capacities |
|
| Curb Mass: | 476.3lb |
| Seat Height : | 32.7 in |
| Overall Height : | 45.7 in |
| Overall Length : | 81.5 in |
| Overall Width : | 30.3 in |
| Wheelbase : | 57.1 in |
| Fuel Capacitiy : | 4.5 gal |
