• 2-cylinder, 4-stroke, spark-ignition engine, 75° V arrangement, liquid-cooled • Brembo fixed mounted two-piston brake calipers • Electric Starter • 6-speed, claw shifted • 1,195 cm³

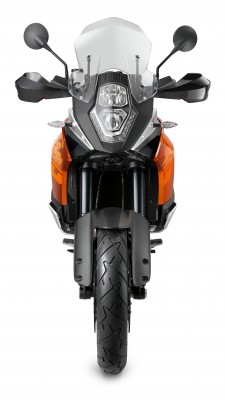

KTM 1190 ADVENTURE 2013
KTM sets the new standard in the travel segment with the new Adventure generation. It's over a decade now since the first Adventure motorcycle from Mattighofen appeared on the market – with the genes of the KTM that won the Dakar Rally eleven times in succession. The consistent transfer of expertise from racing into series production was the guarantee for the KTM Adventures always being ahead of the rest of the pack. The new 1190 Adventure sets the standard for the whole travel segment: 150 hp with a weight of only 230 kg fully tanked combine to produce a power-to-weight ratio previously unheard of in this class and therefore delivering unrivalled ride dynamics. At the same time, the powerful, economical and cultivated engine enables either particularly relaxed and comfortable riding or, if required, super-sporty propulsion – with every conceivable level in between. The chassis combines lightness with outstanding geometry and fantastic suspension, which, together with completely new tyres for the travel enduro class, allow undreamed of riding pleasure in all conditions and whatever speed you desire, from very relaxed to very, very fast.
ENGINE |
|
Engine Type : | 2-cylinder, 4-stroke, spark-ignition engine, 75° V arrangement, liquid-cooled |
Bore And Stroke : | 105 mm x 69 mm |
Engine lubrication : | Forced oil lubrication with 3 rotor pumps |
Starter : | Electric starter |
Primary and Secondary Ratio : | 40:76 / 17:42 |
Ignition system : | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
DRIVE TRAIN |
|
Transmission : | 6-speed, claw shifted |
Final Drive : | 5/8 x 5/16” X‑Ring |
CHASSIS / SUSPENSION / BRAKES |
|
Front Suspension : | 190 mm |
Rear Suspension : | 190 mm |
Front Brake : | 2 x Brembo radially mounted four-piston brake calipers |
Rear Brake : | Brembo fixed mounted two-piston brake calipers |
DIMENSIONS |
|
Rake : | 64° |
Wheelbase : | 1,560 mm |
Seat Height | (unloaded) 860 / 875 mm |
Ground Clearance : | (unloaded) 220 mm |
Fuel Capacity : | 23l |
|
Specifications subject to change without notice
